Place of Origin : China
Brand Name : Forsentek
Model Number : FDDW
MOQ : 1pc
Packaging Details : Carton
Delivery Time : 3~25 working days
Payment Terms : T/T,Western Union or Paypal
Supply Ability : 2000pcs/month
Usage : Force measurement
Theory : Strain gauge load cell
Output : Analog Sensor
Capacity : 120KN 180KN 220KN 260KN 330KN 400KN 500KN

Features

Dimensions


Specifications
| Capacity | 120KN 180KN 220KN 260KN 330KN 400KN 500KN |
| Rated output | 2.0mV/V |
| Excitation | 5-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(30min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.01% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 730±50 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Alloy steel |
| Cable | Ø4.8*2000mm |
| Wiring code | Red--Exc+ Green--Exc- Yellow--Sig+ White--Sig- |

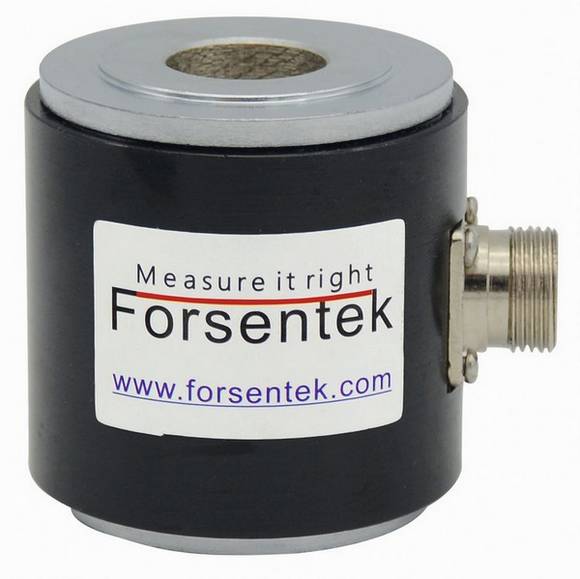

Through hole load cell Donut load cell



|   |
